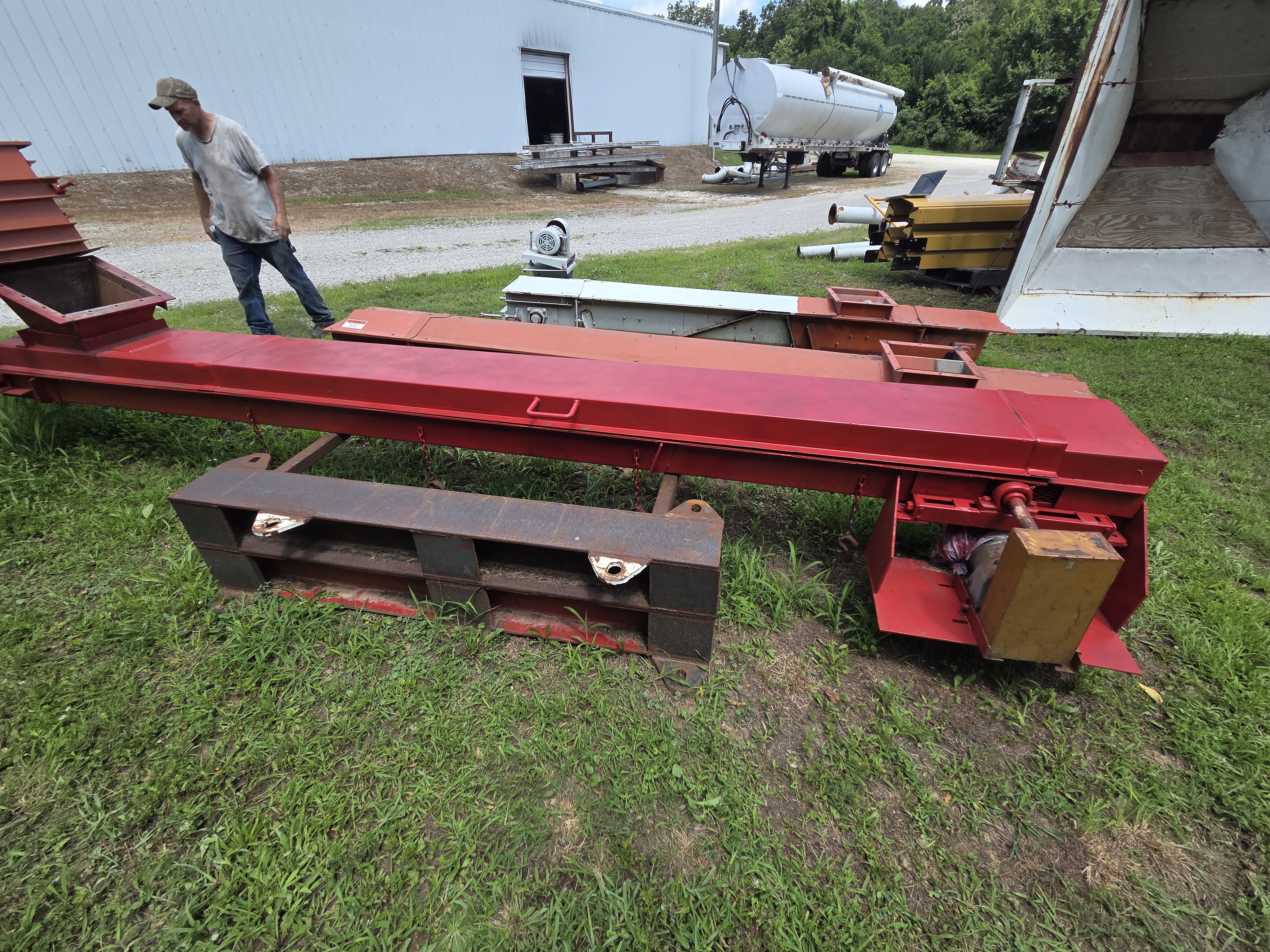

Belt Conveyor with cover

12" Slider Bed Belt Conveyor

Manufacturer: Unknown

Model: Unknown

Condition: Used – Belt Missing

Specifications

• Overall Length (OAL): 16' 2"

• Belt Width: Approximately 12"

• Conveyor Type: Horizontal slider bed belt conveyor

• Bed Construction: Heavy-duty formed steel slider pan

• Frame: Welded structural steel

• Head Pulley: Lagged steel drive pulley

• Tail Pulley: Steel return pulley

• Take-Up: Screw take-up adjustment at tail

• Drive: Shaft-mounted gear reducer

• Motor: Need to verify size 1 or 2 hp - 3 phase

• Guarding: Gear reducer guard included

• Discharge: End discharge

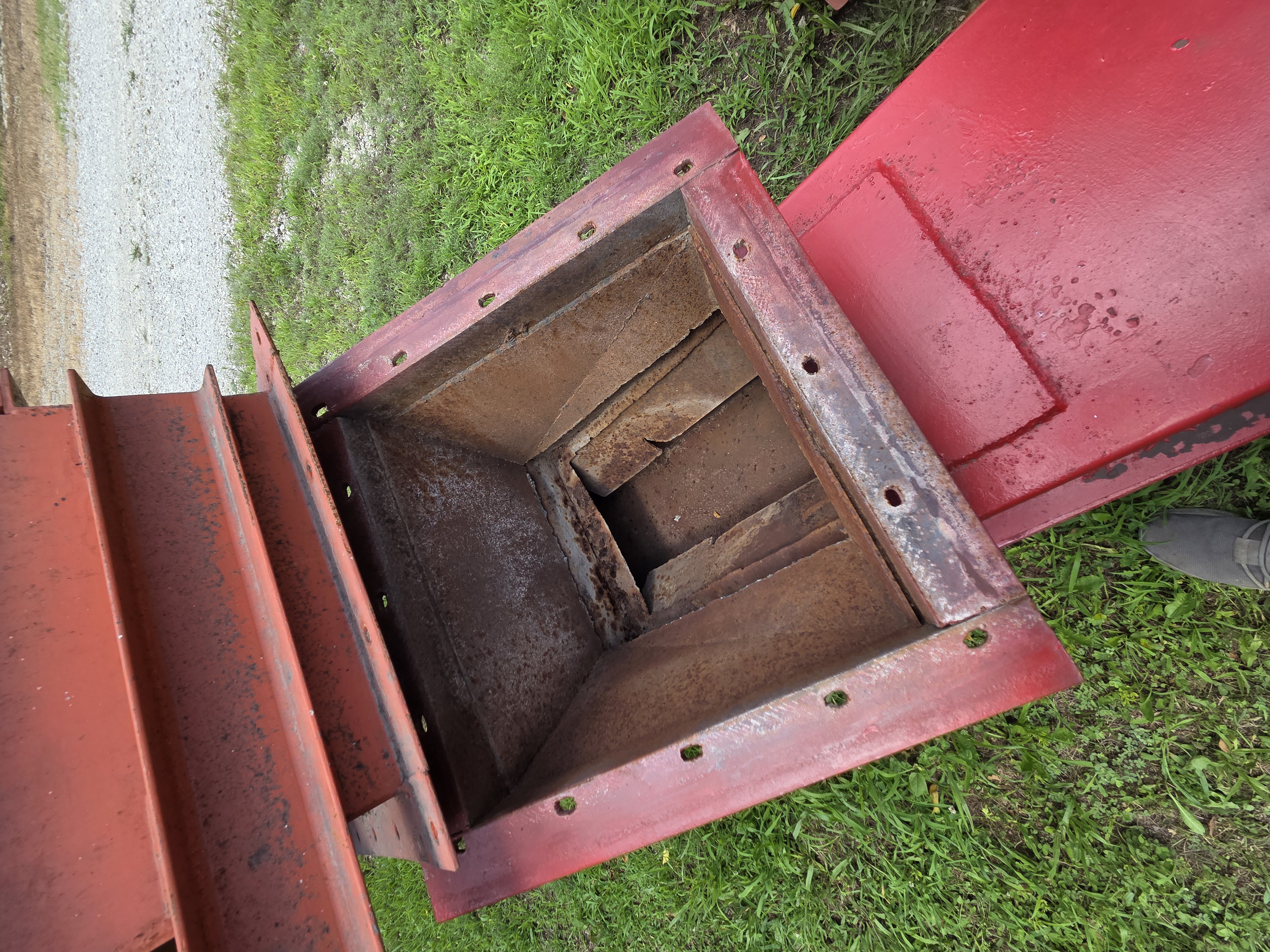

• Loading: Open receiving hopper at tail

• Finish: Recently painted red

Estimated Capacity

With a 12" belt:

(Actual capacity depends on belt speed and loading depth.)

Condition Notes

• Belt is missing and will need replacement.

• Drive motor size needs to be verified - 3 phase motor

• Gear reducer

• Heavy-duty slider bed is in good structural condition.

• Head and tail pulleys rotate freely

• Fresh paint; interior slider bed shows normal surface oxidation.

• Good candidate for refurbishment or replacement belt installation.
