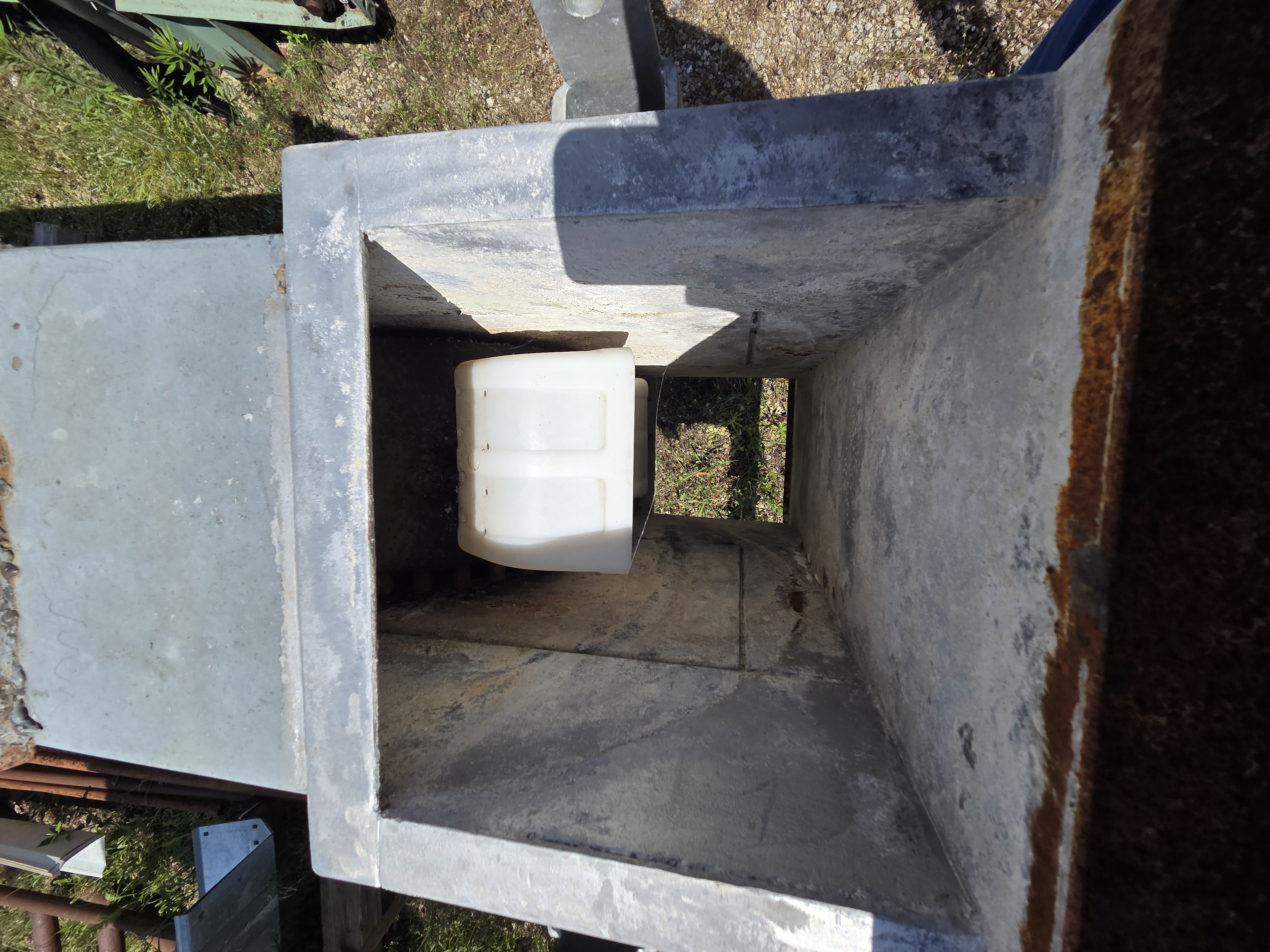

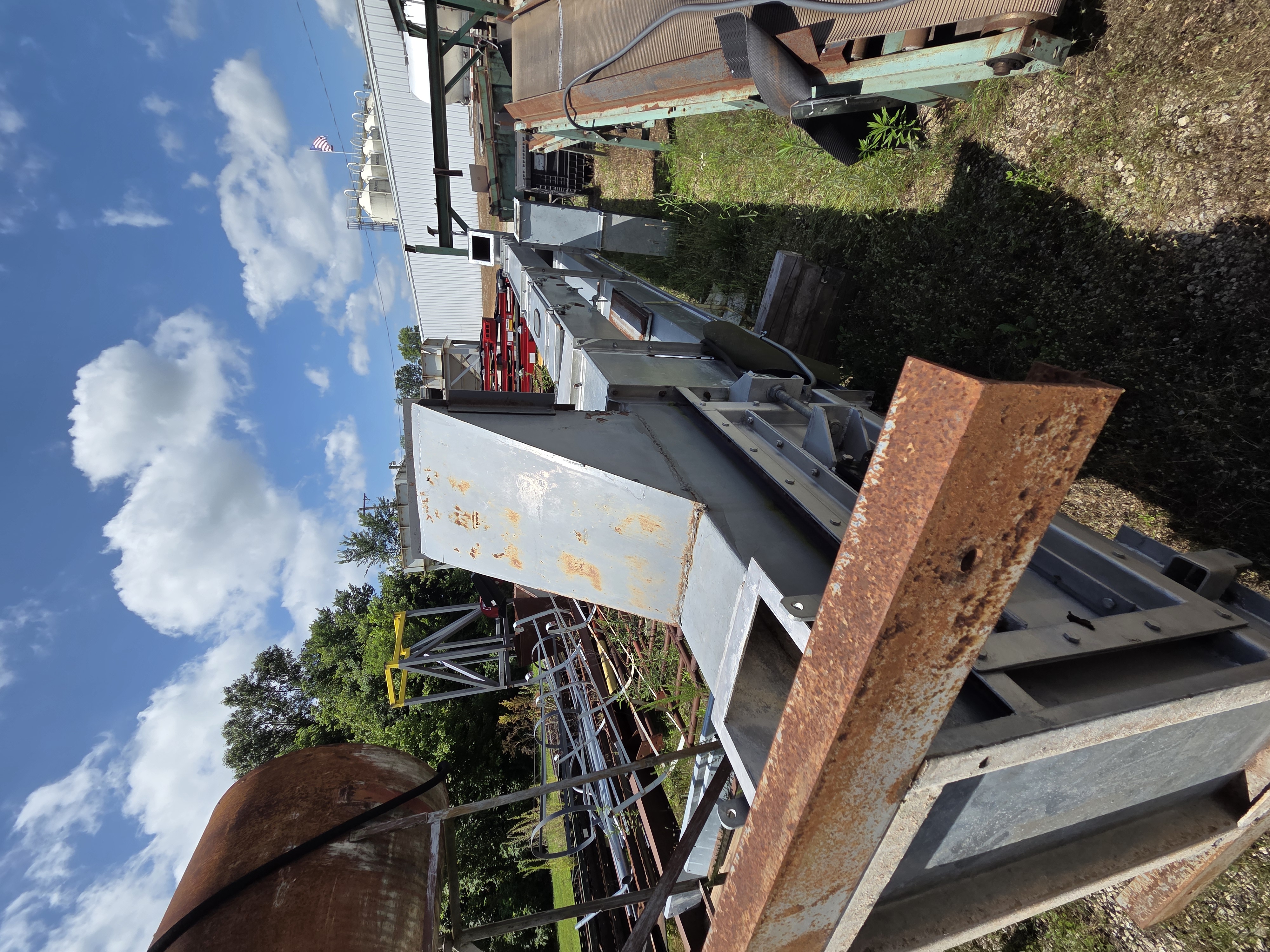

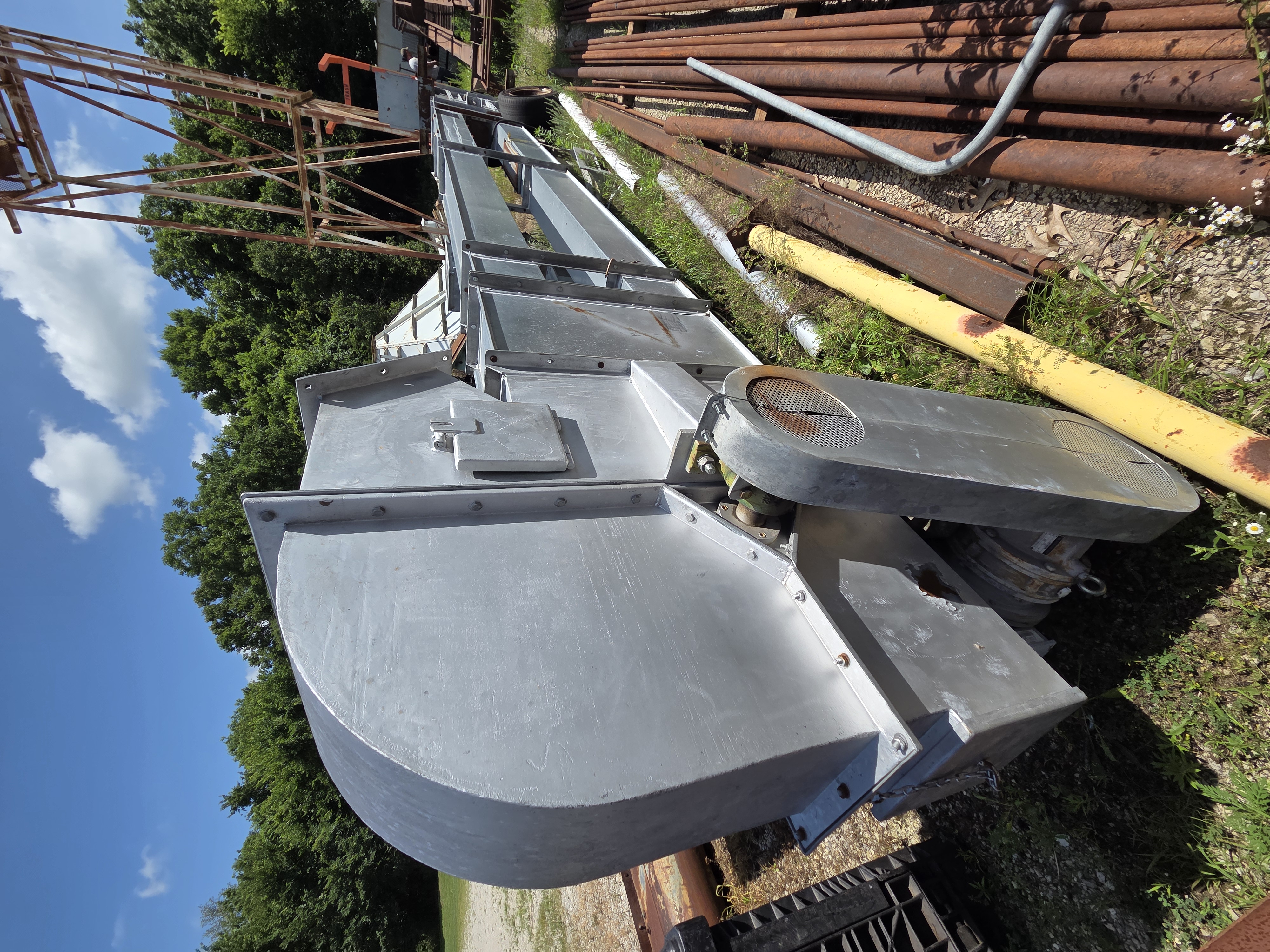

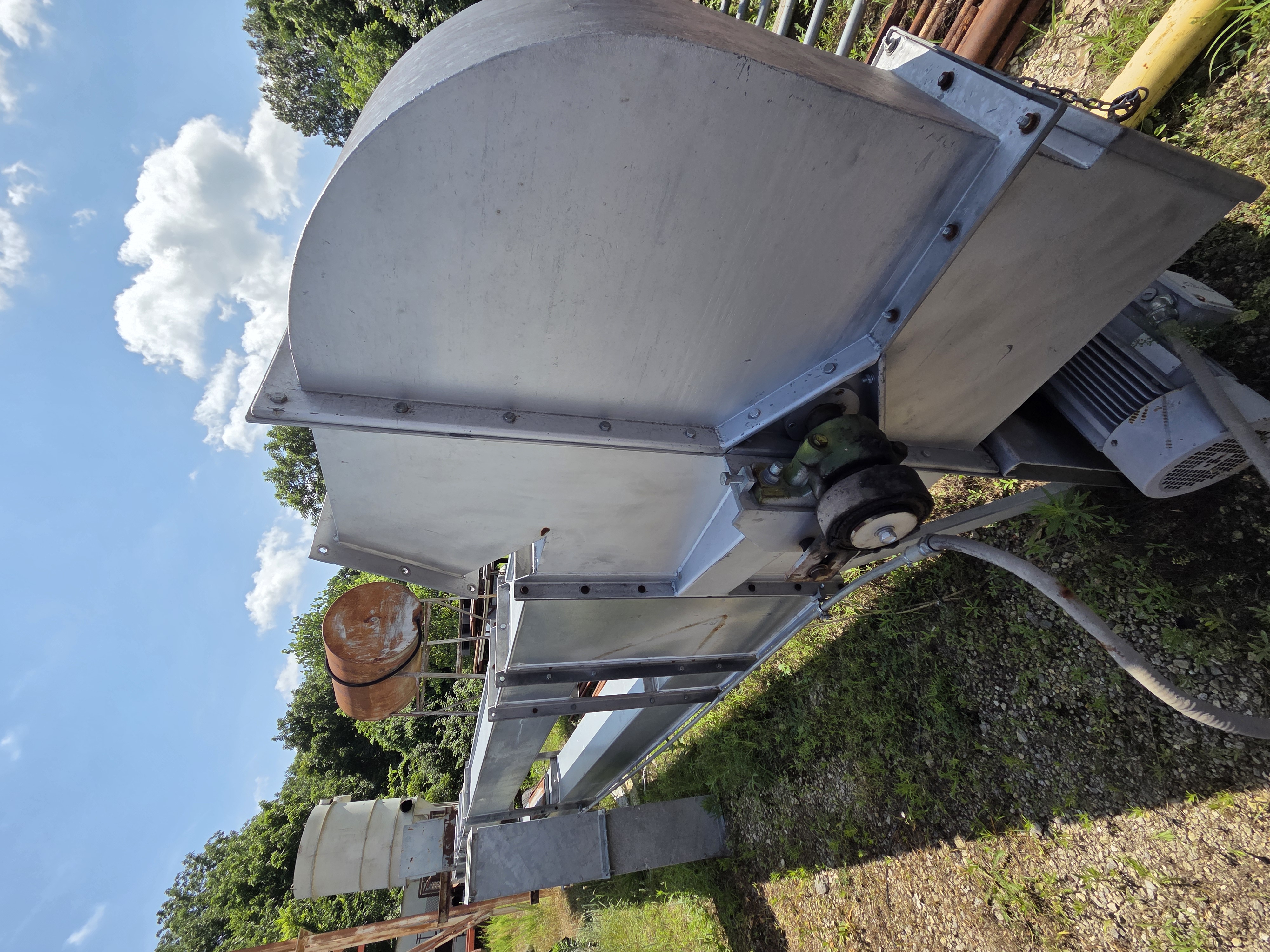

Galvanized Bucket Elevator – 24' 2" OAL with 4' Extension

Price:

Contact for Pricing

Description

Heavy-duty galvanized bucket elevator in good used condition. This unit is ideal for handling grain, seed, feed, wood pellets, fertilizer, biomass, and other free-flowing bulk materials. The galvanized housing provides excellent corrosion resistance for indoor or outdoor installations.

Includes an additional 4-foot galvanized casing section, allowing the elevator to be extended for additional discharge height.

Specifications

• Overall Length: 24' 2"

• Includes additional 4' extension section

• Construction: Hot-dip galvanized steel

• Bucket Type: White poly buckets

• Bucket Size: 5" x 7"

• Belt Style: Rubber belt with bolted buckets

• Discharge Style: Centrifugal discharge

• Drive: Gear reducer with electric motor

• Head pulley with inspection access

• Boot section with material inlet

• Mounted on support legs

Estimated Performance

4–5 TPH Pellet Capacity

Capacity varies by product, bucket spacing, and belt speed.

Applications

• Grain

• Seed

• Animal feed

• Wood pellets

• Fertilizer

• Plastic pellets

• Biomass

• Agricultural and industrial bulk materials

Condition

• Good used condition

• Galvanized housing is clean with minimal corrosion

• Poly buckets are intact

• Includes drive assembly with gear reducer and electric motor

• Includes extra 4-foot casing section
