Redline Belt Conveyor
13 foot overall length 20" wide belt
$7000.00
Redline Portable Belt Conveyor
General Specifications
Specification | Value |
|---|---|
Manufacturer | Redline Systems |
Equipment Type | Portable Troughed Belt Conveyor |
Belt Width | 20 in. |
Overall Length | 13 ft |
Belt Type | Chevron Cleated Rubber Belt |
Frame Construction | Heavy-duty welded steel |

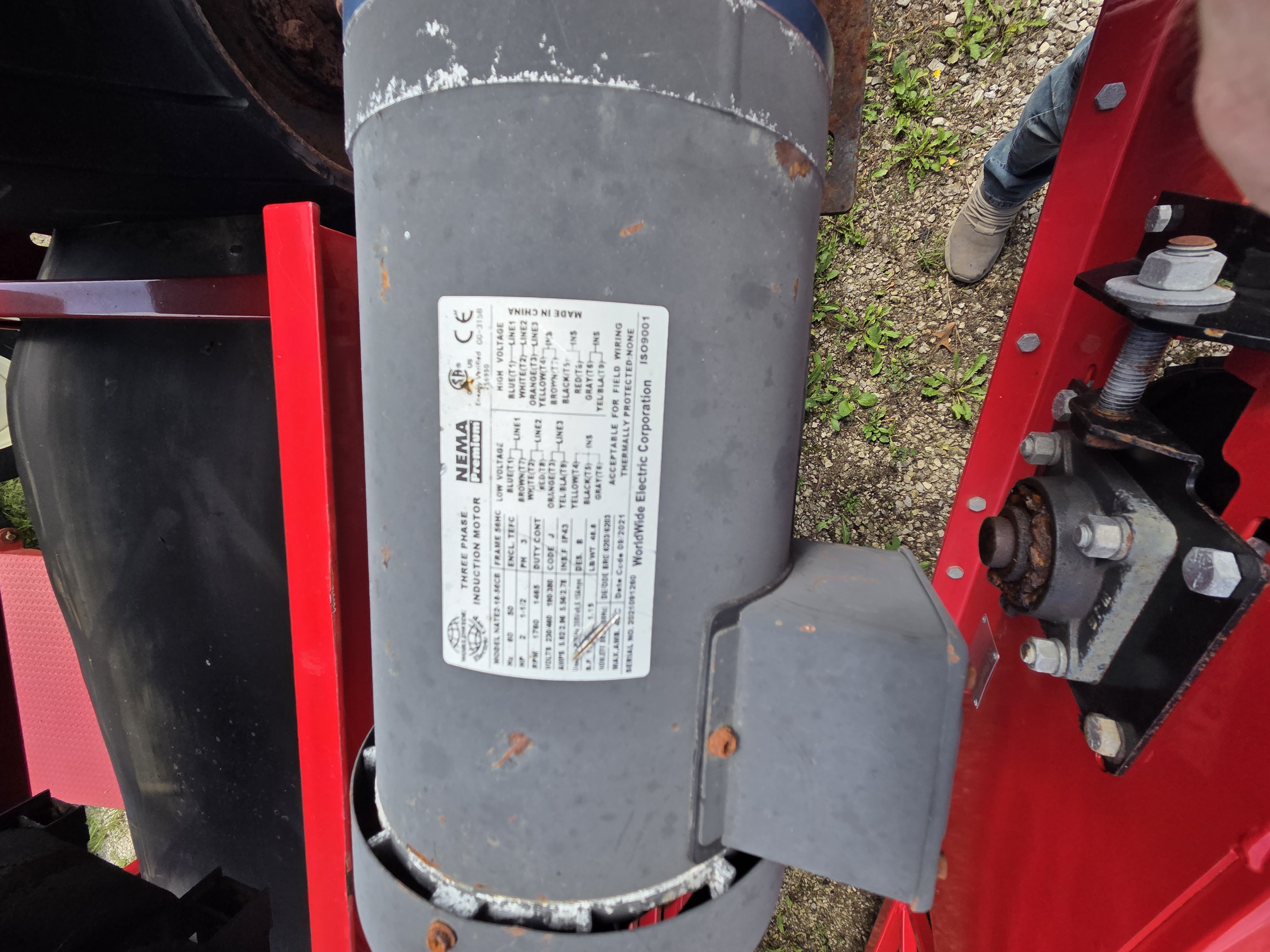

Drive Motor | 2 HP TEFC Electric Motor |
Drive | Shaft-mounted worm gear reducer |
Support | Portable frame with flotation tires |
Belt Tracking | Adjustable take-up tail pulley |
Condition | Never Used |
Estimated Performance
Based on a 20" belt with a typical belt speed of 180–250 FPM:
Material | Capacity |
|---|---|
Wood Pellets | 50–80 TPH |
Animal Feed | 60–90 TPH |
Grain | 70–110 TPH |
Fertilizer | 60–90 TPH |
Wood Chips | 40–70 TPH |
Actual capacity depends on belt speed, trough angle, incline angle, and material characteristics.
Applications
Suitable for conveying:
Wood pellets
Animal feed
Grain
Seed
Biomass
Fertilizer
Sand
Aggregate
Recycled materials
Wood chips
Features
Heavy-duty industrial construction
20-inch chevron cleated belt for inclined conveying
Low-maintenance shaft-mounted gear reducer
Portable design with flotation tires
Adjustable belt tracking
Fully welded steel frame
Compact 2 HP drive for energy-efficient operation
Suitable for indoor or outdoor installation
Estimated Weight
Approximately 1,400–1,800 lbs
Electrical
Motor: 2 HP
Power: 230/460 Volt, 3 Phase
Frequency: 60 Hz
