Redline Belt Conveyor

20 foot overall length 20" wide belt

$7000.00

Redline Portable Belt Conveyor

General Specifications

Specification

Value

Manufacturer

Redline Systems

Equipment Type

Portable Troughed Belt Conveyor

Belt Width

20 in.

Overall Length

20 ft

Belt Type

Chevron Cleated Rubber Belt

Frame Construction

Heavy-duty welded steel

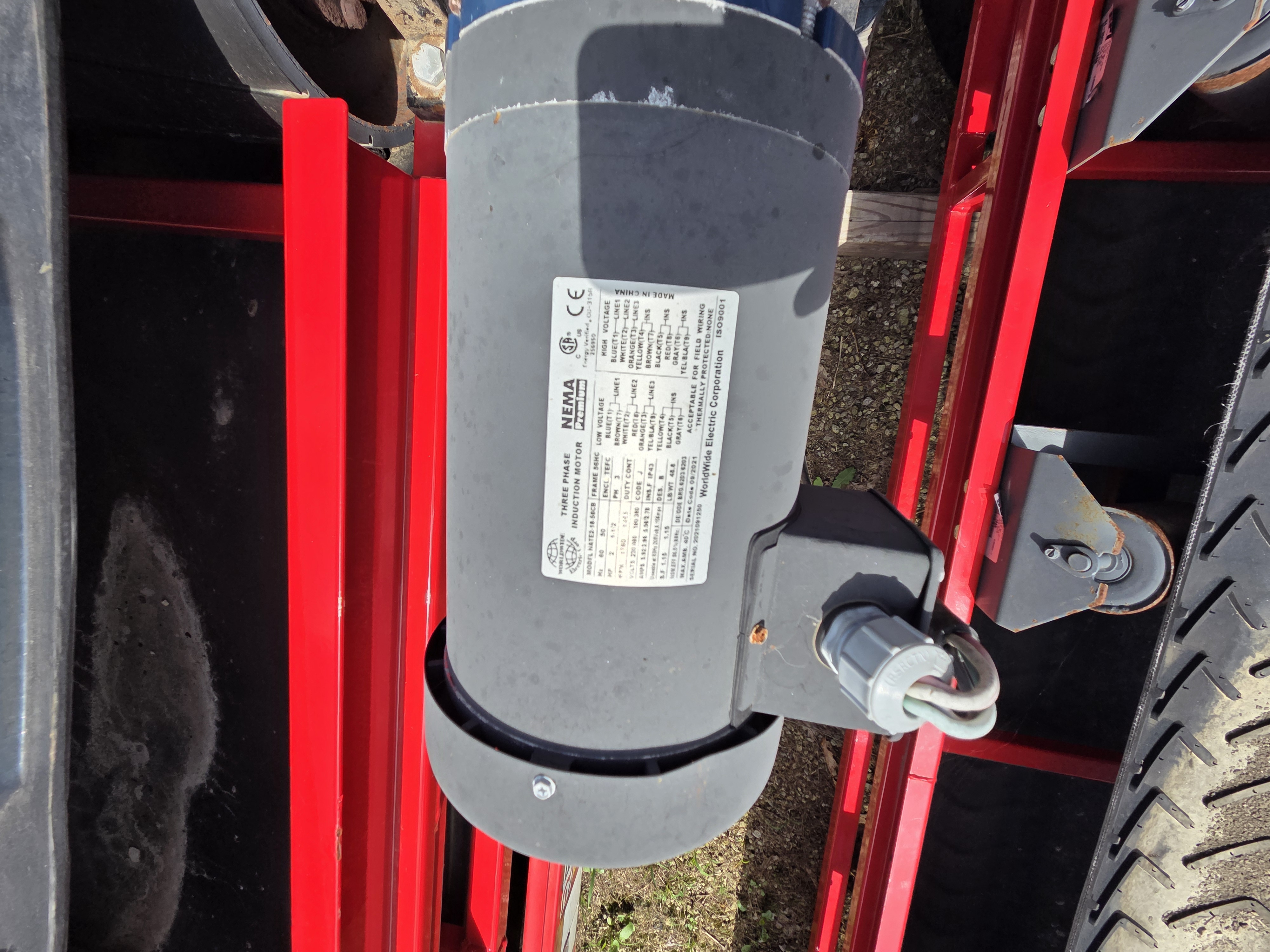

Drive Motor

2 HP TEFC Electric Motor

Drive

Shaft-mounted worm gear reducer

Support

Portable frame with flotation tires

Belt Tracking

Adjustable take-up tail pulley

Condition

Never Used

Estimated Performance

Based on a 20" belt with a typical belt speed of 180–250 FPM:

Material

Capacity

Wood Pellets

50–80 TPH

Animal Feed

60–90 TPH

Grain

70–110 TPH

Fertilizer

60–90 TPH

Wood Chips

40–70 TPH

Actual capacity depends on belt speed, trough angle, incline angle, and material characteristics.

Applications

Suitable for conveying:

  • Wood pellets

  • Animal feed

  • Grain

  • Seed

  • Biomass

  • Fertilizer

  • Sand

  • Aggregate

  • Recycled materials

  • Wood chips

Features

  • Heavy-duty industrial construction

  • 20-inch chevron cleated belt for inclined conveying

  • Low-maintenance shaft-mounted gear reducer

  • Portable design with flotation tires

  • Adjustable belt tracking

  • Fully welded steel frame

  • Compact 2 HP drive for energy-efficient operation

  • Suitable for indoor or outdoor installation

Estimated Weight

  • Approximately 1,400–1,800 lbs

Electrical

  • Motor: 2 HP

  • Power: 230/460 Volt, 3 Phase

  • Frequency: 60 Hz
