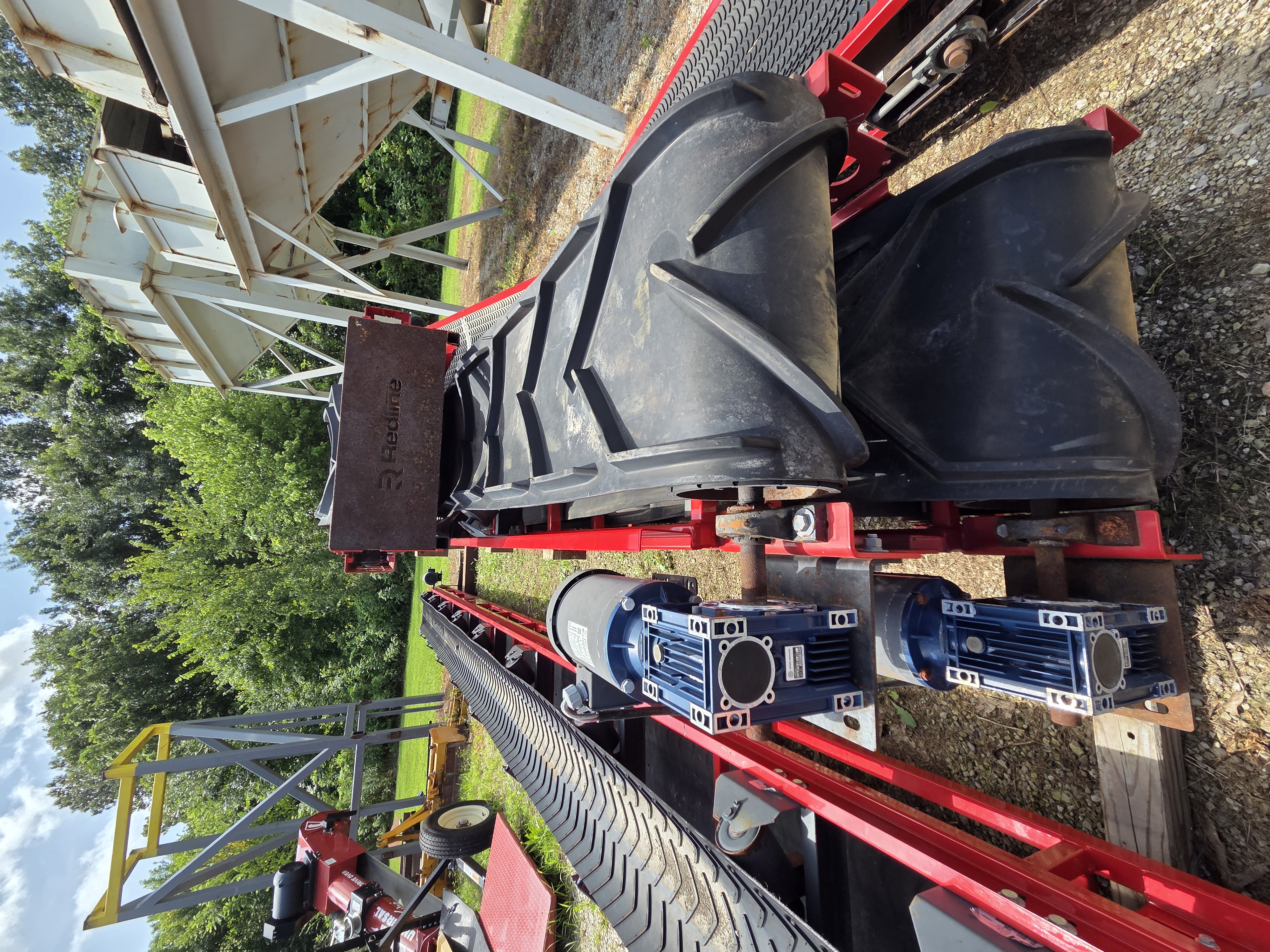

Redline Belt Conveyor

28 foot overall length 18" wide belt

$8000.00

Redline Portable Belt Conveyor

General Specifications

Specification

Value

Manufacturer

Redline Systems

Equipment Type

Portable Troughed Belt Conveyor

Belt Width

18 in.

Overall Length

28 ft

Belt Type

Chevron Cleated Rubber Belt

Frame Construction

Heavy-duty welded steel

Drive Motor

2 HP TEFC Electric Motor

Drive

Shaft-mounted worm gear reducer

Support

Portable frame with flotation tires

Belt Tracking

Adjustable take-up tail pulley

Condition

Never Used

Estimated Capacity – 18" Belt Conveyor

Material

Estimated Capacity

Wood Pellets

40–65 TPH

Animal Feed

45–70 TPH

Grain (Corn, Soybeans, Wheat)

55–85 TPH

Fertilizer

45–70 TPH

Wood Chips

30–55 TPH

Sand/Aggregate

35–60 TPH

Applications

Suitable for conveying:

  • Wood pellets

  • Animal feed

  • Grain

  • Seed

  • Biomass

  • Fertilizer

  • Sand

  • Aggregate

  • Recycled materials

  • Wood chips

Features

  • Heavy-duty industrial construction

  • 18-inch chevron cleated belt for inclined conveying

  • Low-maintenance shaft-mounted gear reducer

  • Portable design with flotation tires

  • Adjustable belt tracking

  • Fully welded steel frame

  • Compact 2 HP drive for energy-efficient operation

  • Suitable for indoor or outdoor installation

Estimated Weight

  • Approximately 1,400–1,800 lbs

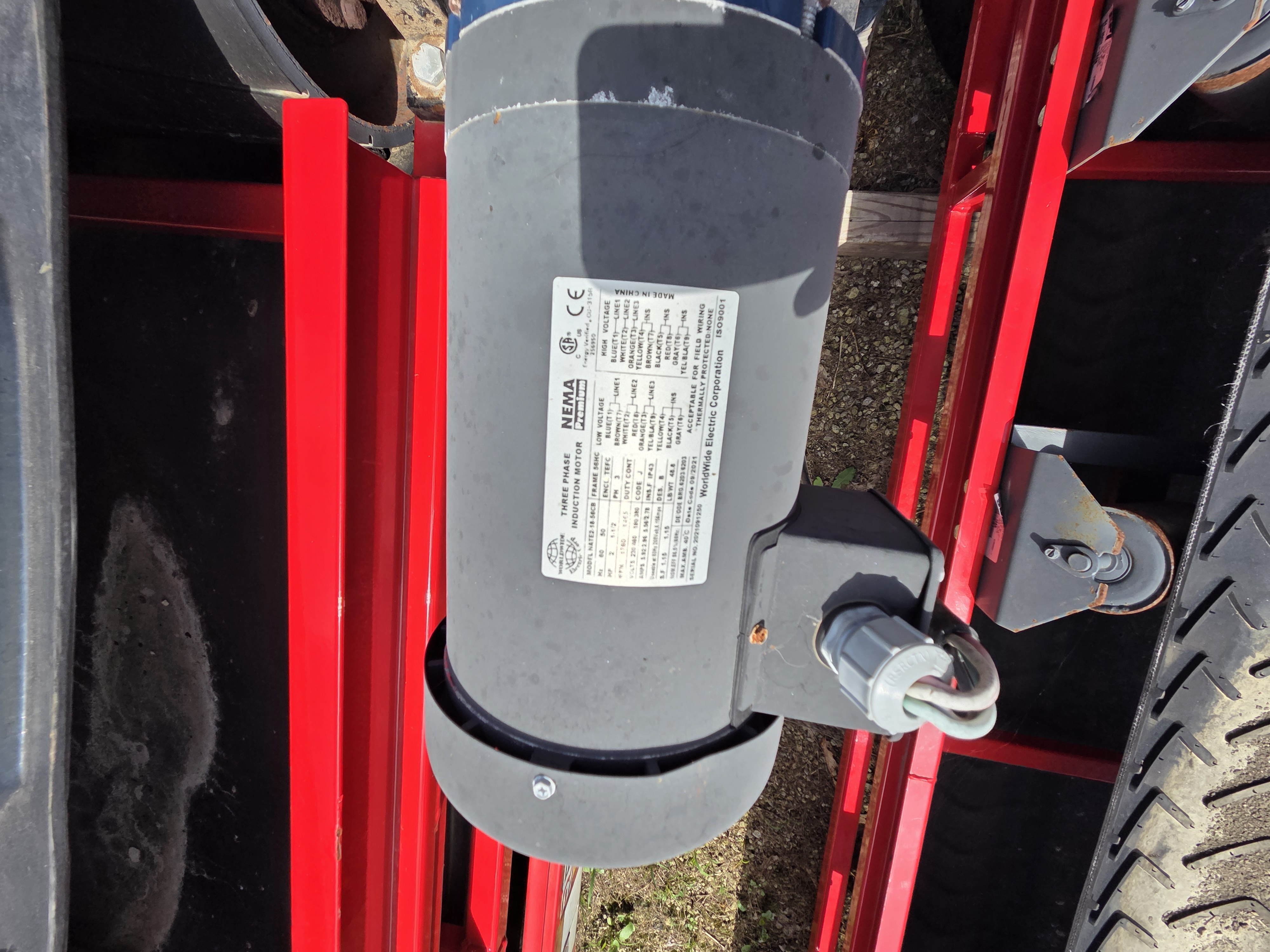

Electrical

  • Motor: 2 HP

  • Power: 230/460 Volt, 3 Phase

  • Frequency: 60 Hz
