Round Bottom Chain Drag Conveyor

Ready to work

$2500.00

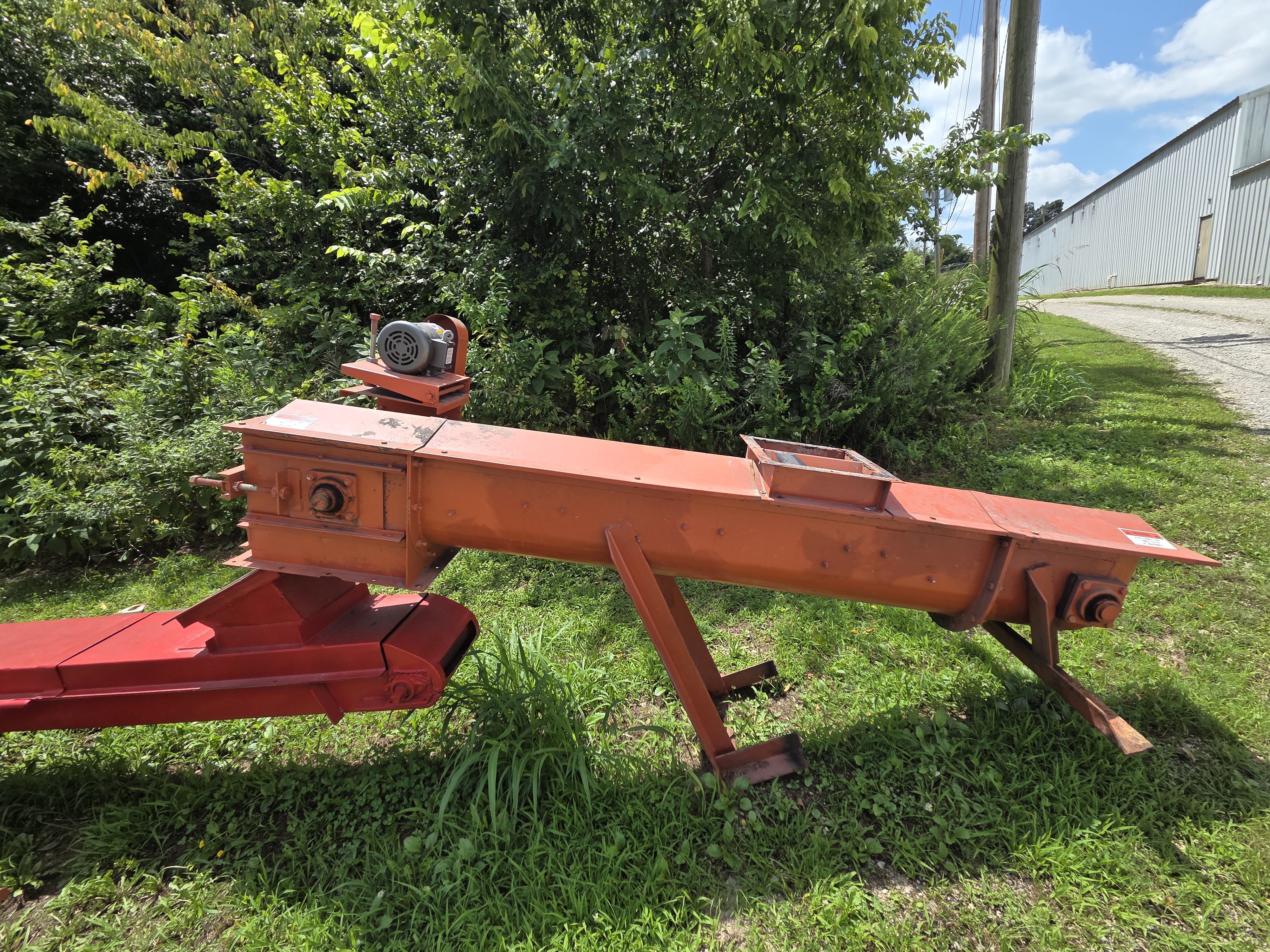

Round bottom chain drag conveyor OAL 9'10", paddle size 4x12"

Round Bottom Drag Chain Conveyor

General Specifications

  • Type: Round Bottom Drag Chain Conveyor

  • Construction: Painted mild steel

  • Overall Length (OAL): 9 ft. 10 in.

  • Paddle Size: 4" × 12" steel paddles

  • Bottom Style: Round-bottom trough

  • Drive: V-belt driven

  • Motor: Baldor three-phase TEFC motor (need to verify hp but we think its 1 of 2 hp)

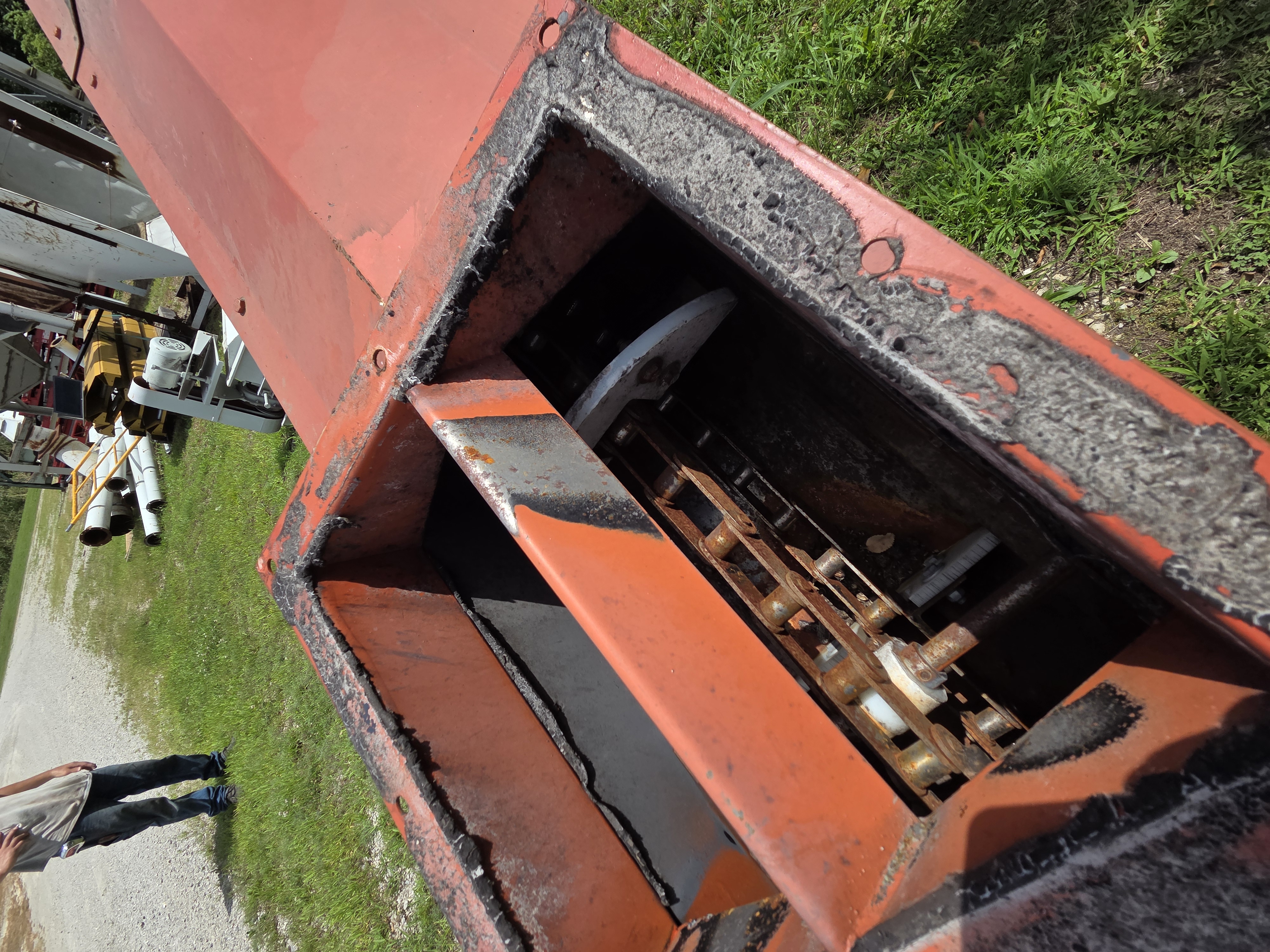

  • Chain: Heavy-duty drag chain with replaceable paddles

  • Inlet: Top center feed opening

  • Discharge: End discharge

Estimated Capacity

With 4" × 12" paddles, this conveyor is typically suited for:

  • Wood pellets: 8–15 TPH

  • Animal feed: 10–18 TPH

  • Grain: 12–20 TPH

Actual capacity depends on chain speed and material characteristics.

Features

  • Heavy-duty welded steel construction

  • Enclosed design minimizes dust and product loss

  • Round-bottom trough improves cleanout and reduces material carryover

  • Adjustable belt tension drive

  • Shaft-mounted bearings

  • Compact footprint for short-distance conveying

Typical Applications

  • Pellet mills

  • Feed mills

  • Grain handling

  • Seed processing

  • Biomass plants

  • Bulk material transfer
