Round Bottom Drag Chain Conveyor

Round bottom chain conveyor OAL 11'10", paddle size 4x12"

Specifications

Round Bottom Chain Conveyor

• Overall Length: 11' 10"

• Conveyor Type: Round Bottom Drag Chain

• Construction: Painted carbon steel

• Paddle Size: 4" × 12"

• Drive: V-belt driven

• Motor:

  • Baldor Industrial

  • 1 HP

  • 230/460V

  • 3 Phase

  • 1725 RPM

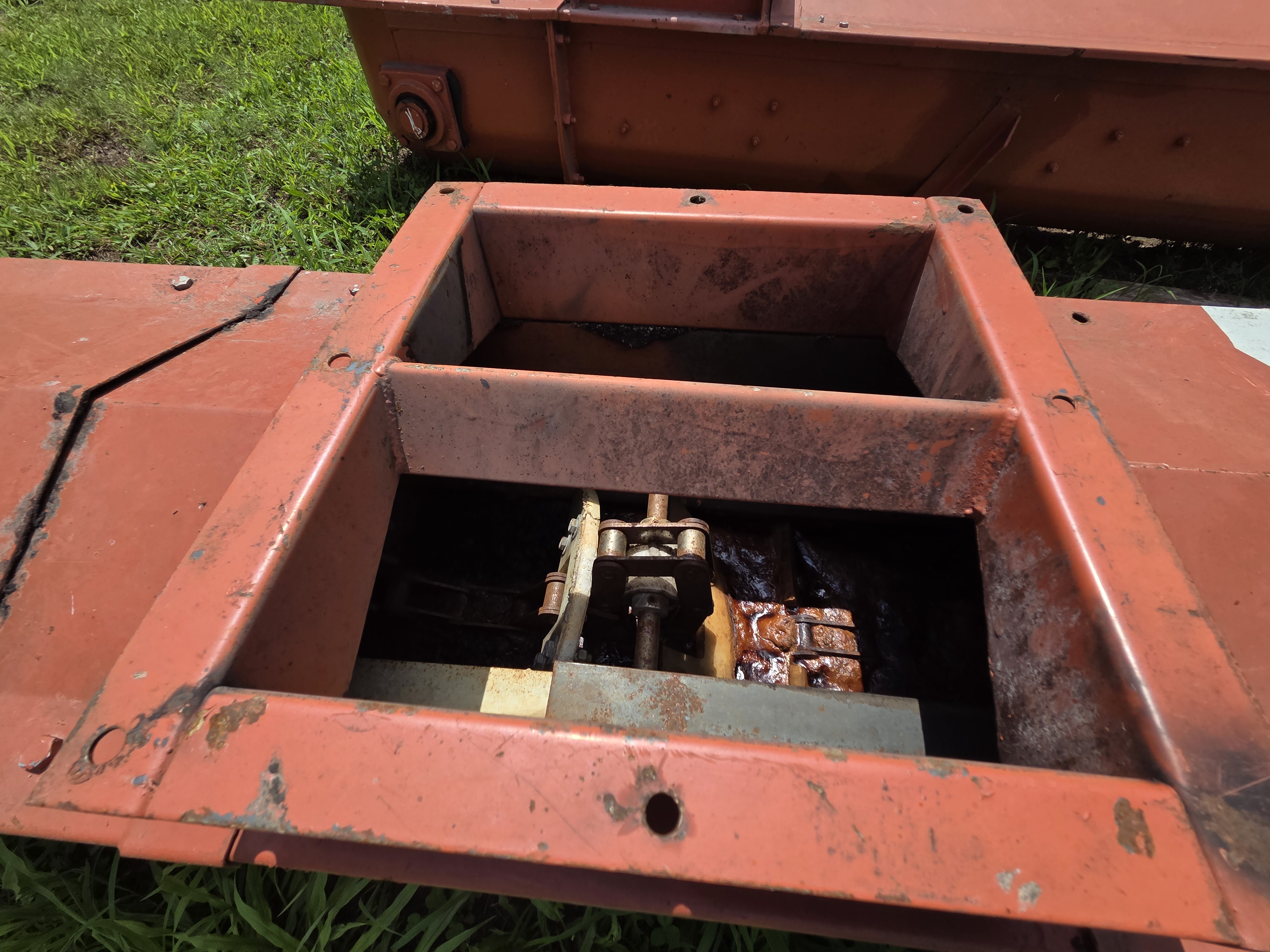

• Top inlet

• Flanged discharge

• Adjustable chain take-up at tail

• Heavy-duty welded construction

Estimated Capacity

Actual capacity depends on chain speed and material, but a conveyor this size typically handles approximately:

A typical operating range would be 20–30 tons/hour for wood pellets at normal chain speeds.
